Screw Piles

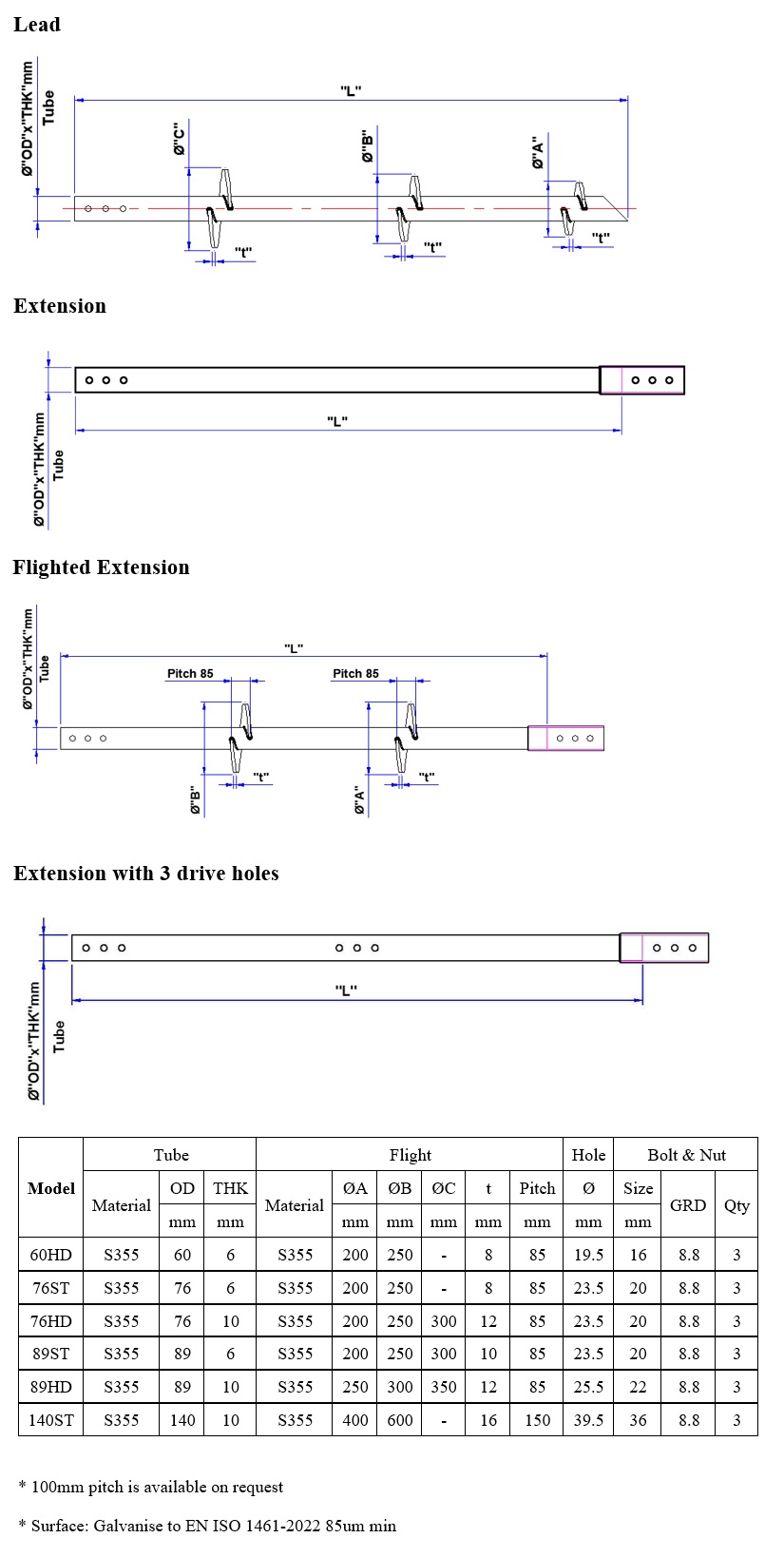

Screw Piles also known as Screw Anchors, Helical Screw Piles and Ground Anchors are a long established form of piling invented in England by Alexander Mitchell in 1833 for supporting lighthouse structures in tidal basins. Today screw anchors are widely used in medium piling applications such as home extensions, conservatories, elevated stadium seating, various building foundations, electricity pylons, street lighting, road signs, elevated walkways, solar farms, protective fencing plus many other uses. SEA Screw Pile system consists of one, two or three helical plates welded onto a central tubular shaft. The load bearing capacity of each anchor depends on three main factors: ground structure, helical plate and shaft dimension.



Advantage for using screw piles verses other piling techniques

Fast instalation, no cement requirement, thus no curing time requied
Less labour, less cost, no need of special transportation for delivery to site, no need of heavy plant for installation
Eco-friendly, less noise, less waste, reduces spoil removal from site (especially cost effective for applications on toxic ground)
Paticularly easy to install at sites with restricted access
Piles can be removed after use by simply unscrewing from the ground.



Product and Service Range

SEA provide a comprehensive range of Screw Piles, suitable for both handheld machines and driven euqipment. Center tubes range from 60mm to 300mm diameter. We hold stock of most sizes at our Redditch warehouse (20 miles south of Birmingham). NEXT DAY DELIVERY to most sites in England for orders received before 2pm.  We also produce bespoke items to customer requirements.





Quality Assurance

SEA Screw Piles are produced to ISO 9000 standard with CE certification
Materials are to high standard specification.  Manufacturing production procedures are closely monitored with rigourous inspection for all piles produced.  With quality paramount we can provide customers with assurance they are using the best screw pile on the market.





Products :

Rock tip screw pile leads

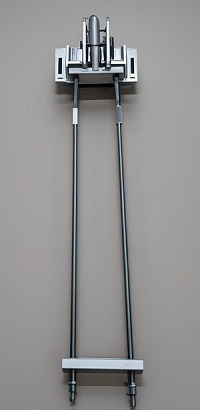

Underpinning bracket

We can supply  various termination end options to suit specific customer requirements

Top hats

For any special request, our dedicated engineers are happy to assist in developing besboke products
